Hi Folks,

First, a big thanks to all that have commented. I really do appreciate the kind words from you all.

Next up on this project is the engine block and transaxle. For the 1969 race, this car was outfitted with a 302 Ford motor with Gurney Westlake heads.

Here is a pic of the engine without the 'bundle of snakes' exhaust..

Here is a photo of the Gurney heads and the water manifolds...

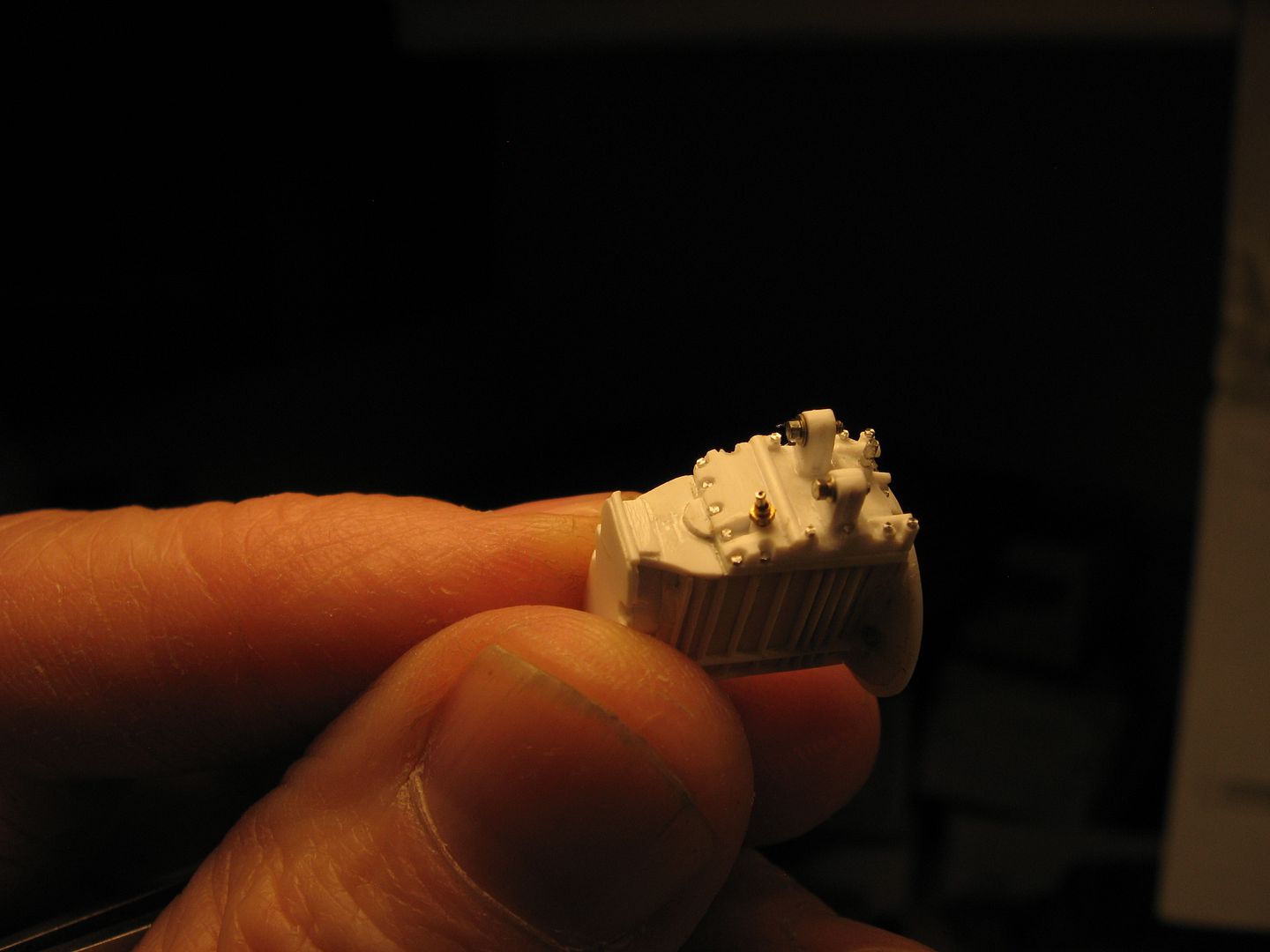

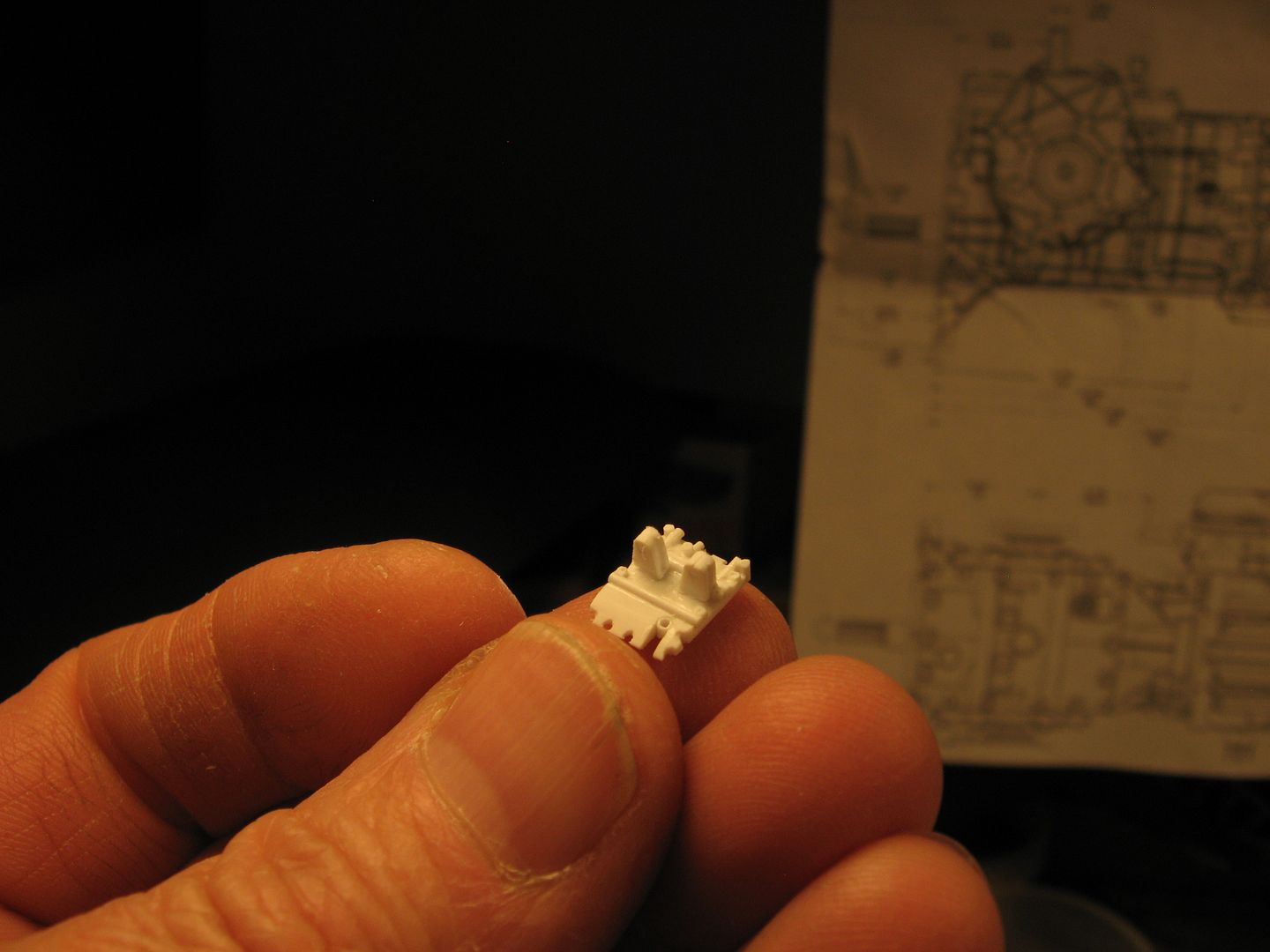

Going to be using styrene for the drivetrain.....

the sparkplugs are not set into their holes all the way in this pic...

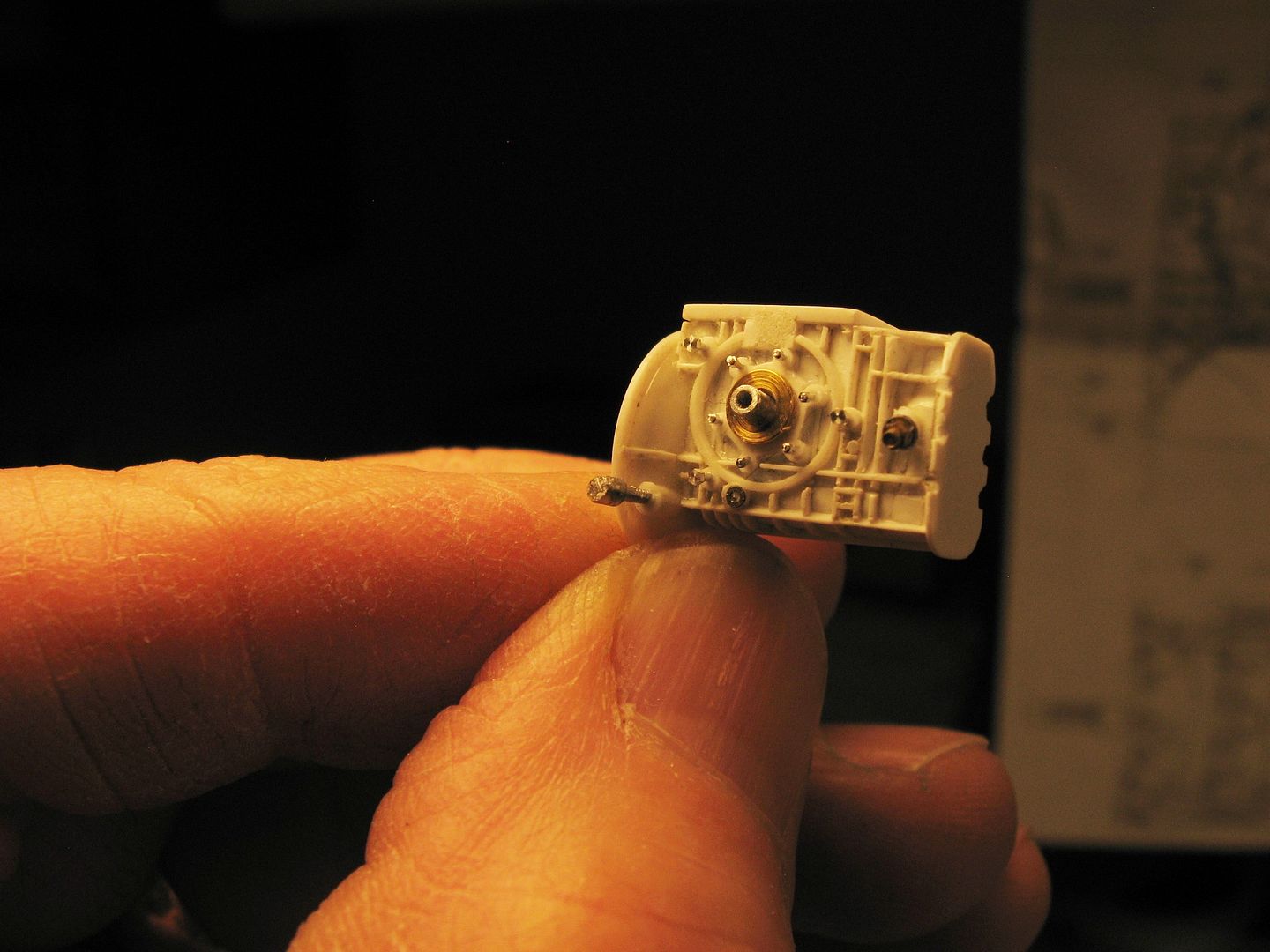

next up is the ZF transaxle.....

Ref. pic of a replica that is still made today...

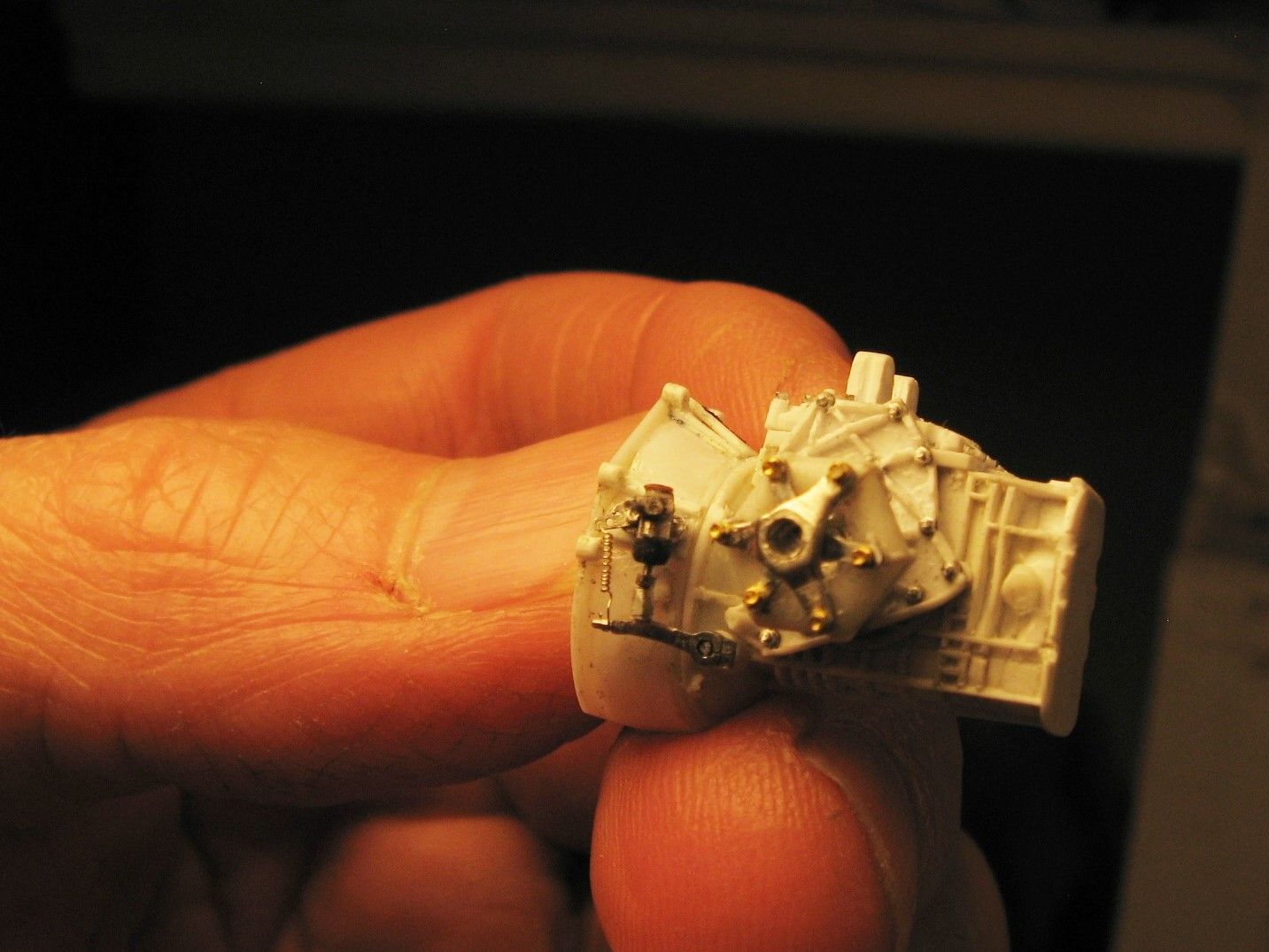

The special bell housing used..

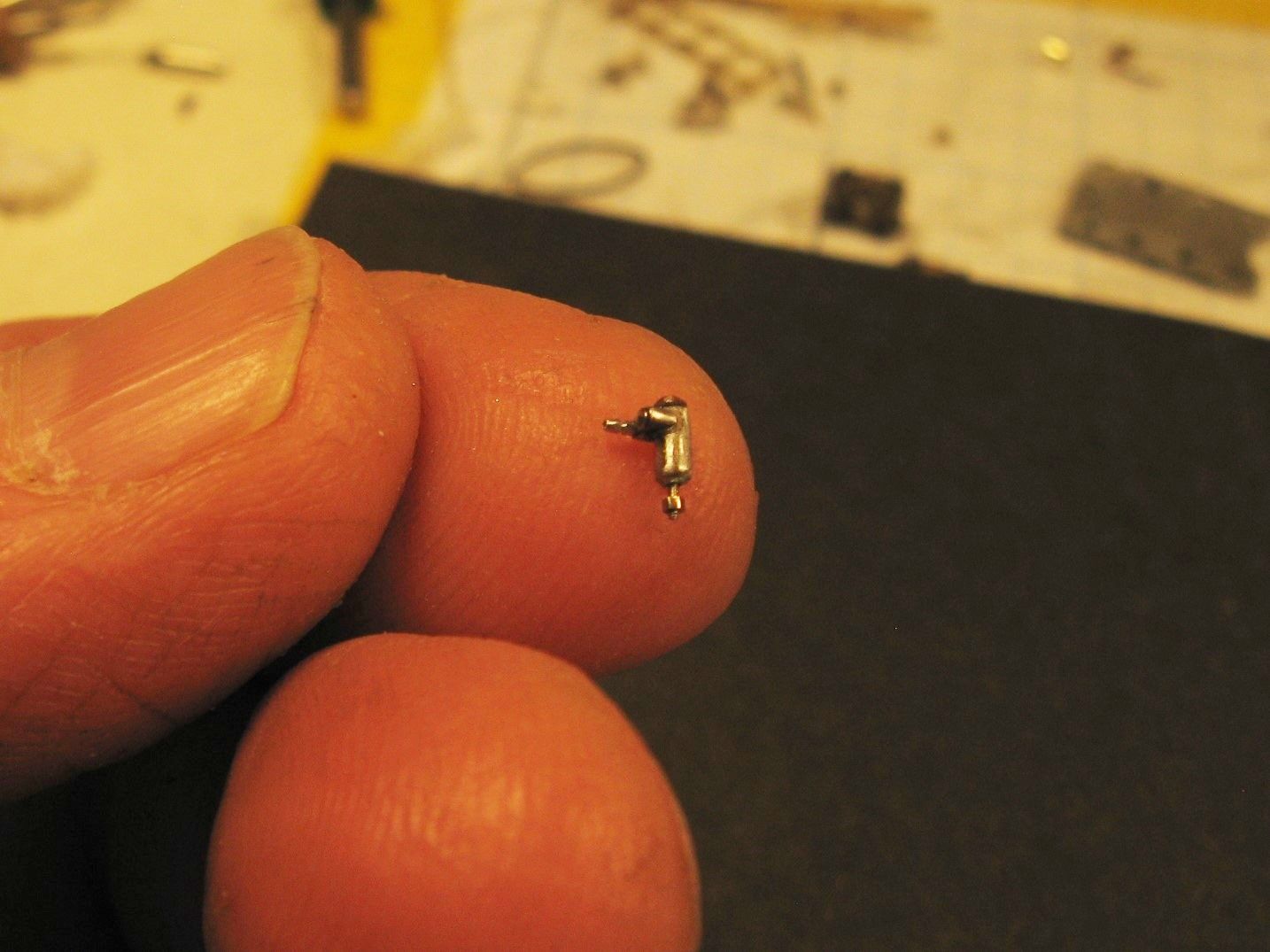

clutch slave unit...

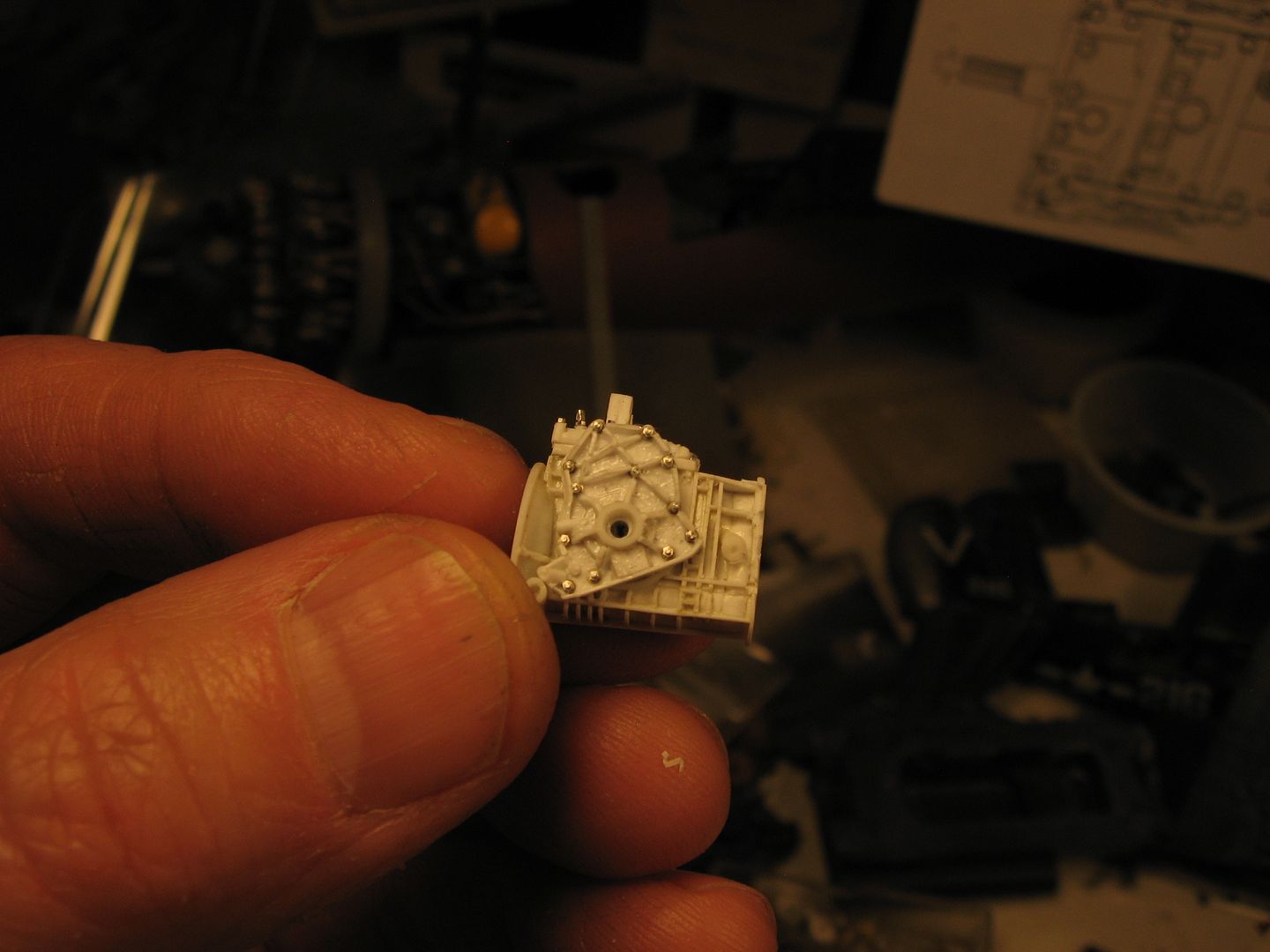

Built up with RB Motion nuts and bolts...

More ......



[Iron Mike]

Wow. That is truly awesome! :drinks



[randy_ditton]

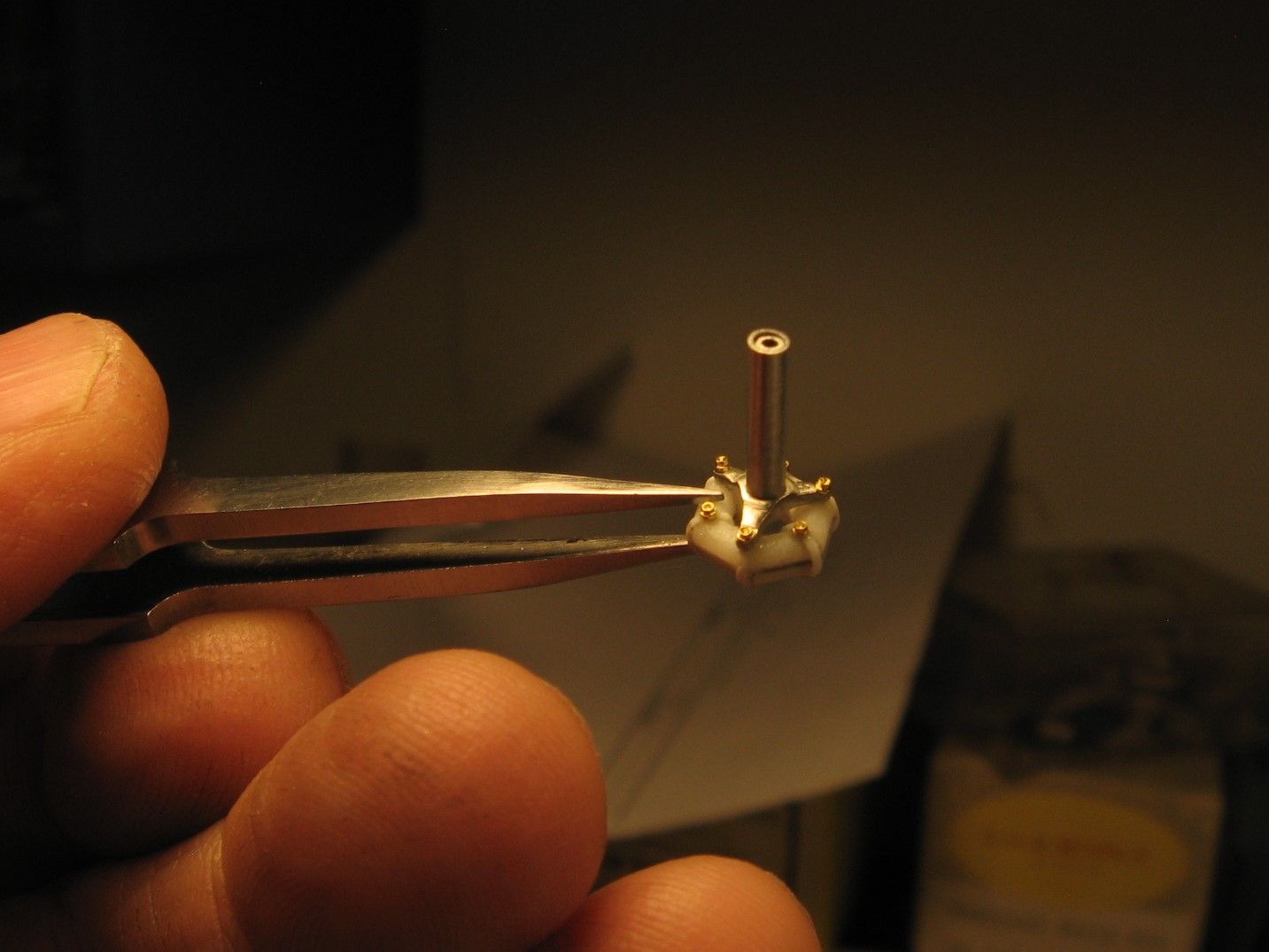

Making up the Rotoflex couplers and half shafts...

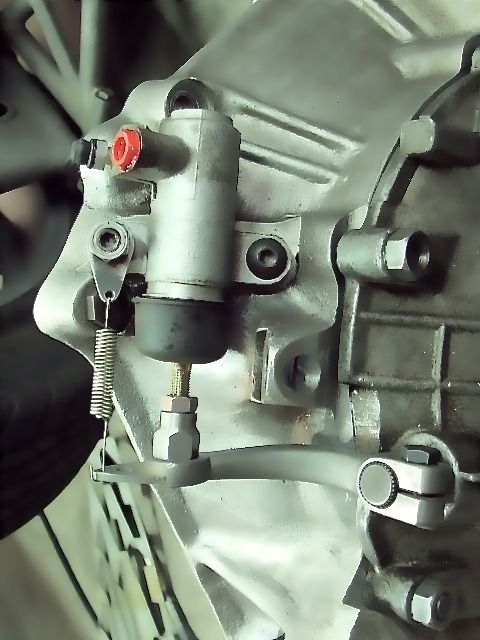

Ref. photo..

Clutch slave cylinder ...

u joints and half shafts....

how it all fits together....

Will post more this weekend.

Thank you for looking in!

Randy



[Iron Mike]

B)



[MrT]

Wow!



[moon puppy]

OMG!



[bob letterman]

Randy,

You da man! That was fantastic!



Bob



[Sherman 18]

OUTSTANDING!


:woohoo:



[phantom II]

:woohoo: ... :coolio . Simply brilliant .

I don't even begin to understand it :facepalm

Cheers, Christian B)



[Iron Mike]

Making up the Rotoflex couplers and half shafts...

Ref. photo..

Clutch slave cylinder ...

u joints and half shafts....

how it all fits together....

Will post more this weekend.

Thank you for looking in!

Randy

Simply one of the best. :yipee



[Heavens Eagle]

Superbly done Randy!



[centaur567]

Incredible!!! My all time favorite car. Best of show already. Gary S.



[randy_ditton]

Hi Folks,

Iron Mike, Thank you my friend

Terry, Thanks for commenting and Appreciate the kick in the rear end

Hey Pup, Glad you like it !

Thank you Mr. Bob ! You still wear the belt

Hi Jeff, From a car guy like you, means a lot!!

Thank you Christian, just trying to muddle thru :cheer:

Thank you Paul !!!!

Hi Gary, Hope to do your favorite justice!

Next up is what I'll call the "hoop". It really is the most important element of the 'tub' chassis in the rear area as everything hangs off it...

On the real car it is made of steel stampings welded together..

Then attached to the rest of the chassis...

Here is a good pic showing the back of the chassis without the drivetrain in the way...

Going to use solid bar stock....

Some ref. pics of rear suspension components.....

My attempts, the functioning shocks are again from RB Motion...

Rear uprights..

Trailing links..

wishbones...

all the parts for one side....

building it up...

Thanks for looking in !!
